OST Photonics CsI(Na) Scintillators

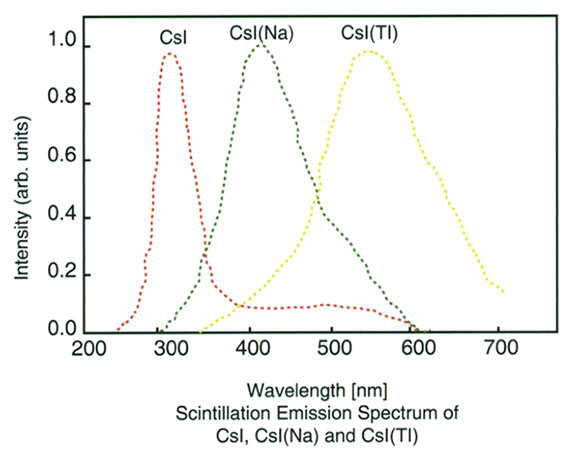

CsI(Na) Sodium doped Cesium Iodide is one of the brightest scintillators, with a broad emission peaking at 420nm, which makes it well matched to the photo-cathode sensitivity of bialkali photo multiplier (PMT). CsI(Na) scintillator has the relatively high light output, around 85% of NaI (TI) scintillator. Due to its high stopping gamma ray power and excellent mechanical&thermal shock resistance, CsI(Na) scintillator is well suited for well logging, spaced research and other harsh environment applications.

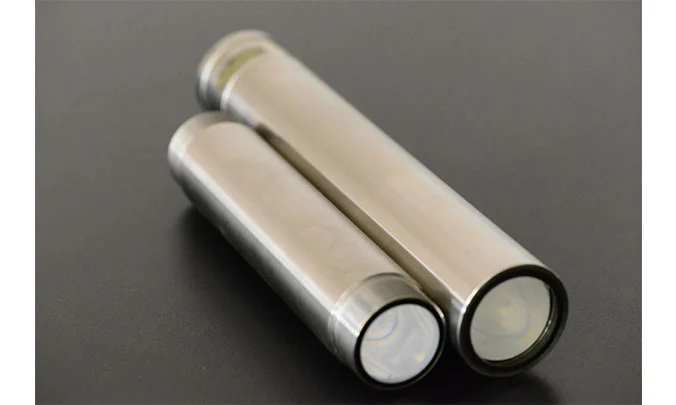

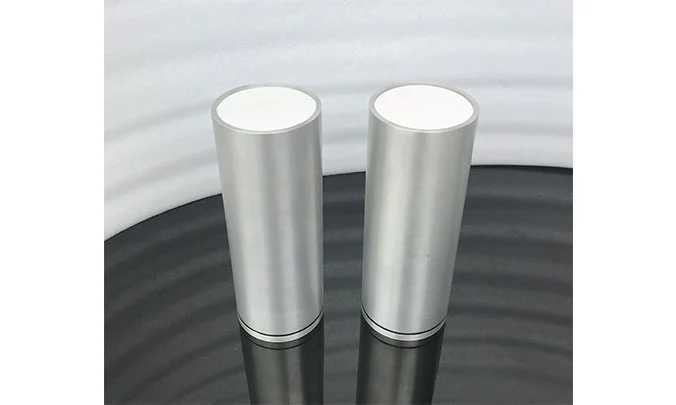

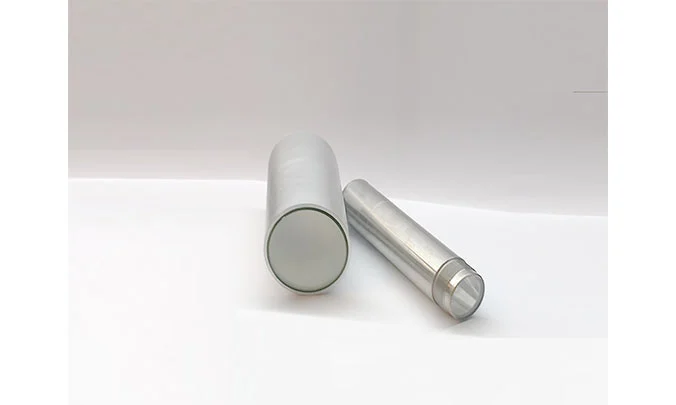

OST Photonics ia able to supply the encapsulated CsI(Na) scintillators and CsI(Na) scintillation detectors upon request. High temperature CsI(Na) scintillators are also available, High temperature CsI(Na) scintillators have excellent mechanical shock resistance, temperature shock resistance and long lifetime, and can withstand high temperature above 150℃.


Application of CsI(Na) Scintillators (CsI:Na Scintillators)


  • Oil and gas exploration – well-logging

  • Nuclear physics

  • Environmental monitoring

  • Industrial – Thickness or density gauging, coal/mineral assy


Advantages of CsI(Na) Scintillators (CsI:Na Scintillators)


  • Excellent energy resolution

  • Emission spectrum well matched with the sensitivity curve of photomultiplier tubes (PMTs) with bialkali photocathodes

  • High light output

  • High Gamma-ray stopping power

  • Good mechanical&thermal shock resistance


The Ability of OST Photonics


  • Maximum Size: ɸ80mm x 400mm

  • Available items: encapsulated scintillator, high temperature encapsulated scintillator, scintillation detector.


Properties of CsI(Na) Scintillators (CsI:Na Scintillators)


Relative Light Output of NaI(Tl)

85%

Scintillation Decay Time (ns)

630

Emission Peak Wavelength (nm)

420

Refractive Index (peak wavelength)

1.80

Density(g/cm3)

4.51

Hygroscopic

Yes

Mohs hardness

2

Afterglow

0.5~5%@6ms

Light yield (photons/keV)

41
