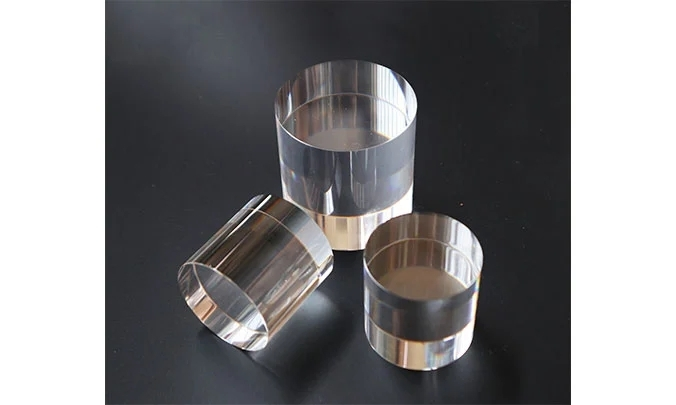

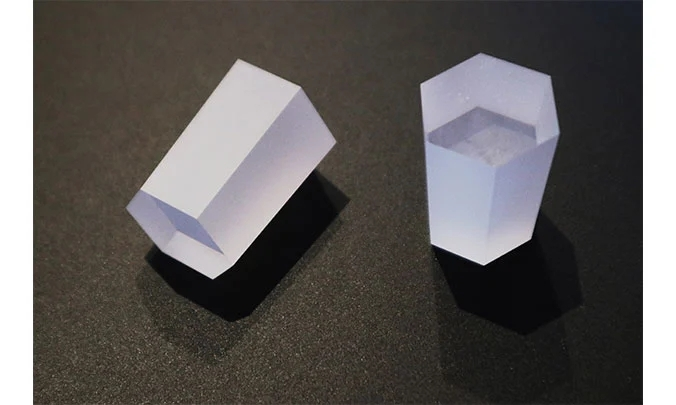

OST Photonics BGO Scintillators

BGO (Bi4Ge3O12) bismuth germanate crystal is one of the most common oxide scintillation materials.  It exhibits stable physical and chemical properties, high mechanical strength, high density, high refractive index, and resistance to harsh environments. With its high stopping power, high scintillation efficiency, good energy resolution and non-hygroscopic, BGO is a good scintillation material for a wide range of applications in high energy physics, space physics, medicine, geological exploration and other industries.


OST Photonics can supply BGO crystals, BGO arrays and BGO scintillation detector upon request. We can offer a variety of design options and reflector materials to optimize array performance and ensure the array's high light output, excellent uniformity and minimal crosstalk.


Application of BGO Scintillators (Bismuth Germanate Scintillators)


  • Positron emission tomography (PET)

  • High-energy physics

  • Nuclear medicine

  • Geological exploration

  • Gamma-ray spectroscopy


Advantages of BGO Scintillators (Bismuth Germanate Scintillators)


  • High Z

  • Good photopeak to Compton ratio

  • The scintillator of choice for neutron activation analysis and active Compton shields

  • High density


The Ability of OST Photonics


  • Maximum Size: ɸ76mm x 300mm, 40mm x 80mm x 200mm

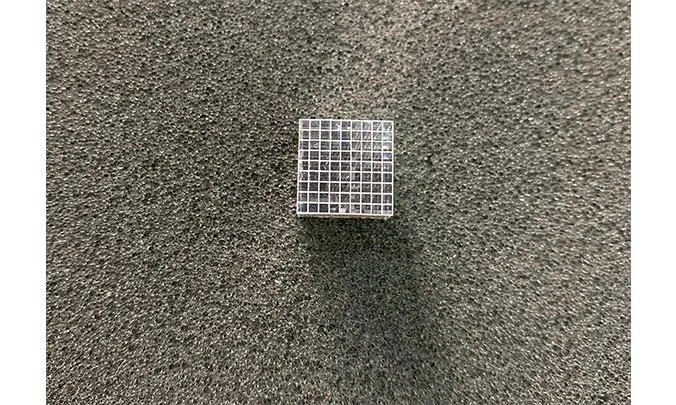

  • Available items: monolithic crystal, pixellated array, scintillation detector


Properties of BGO Scintillators (Bismuth Germanate Scintillators)


Density [g/cm3]

7.13

Melting point [K]

1323

Thermal expansion coefficient [C-1]

7 x 10-6

Cleavage plane

None

Hardness (Mohs)

5

Hygroscopic

No

The wavelength of emission max. [nm]

480

Refractive index @ emission max

2.15

Primary decay time [ns]

300

Light yield [photons/keVγ]

8-10

Photoelectron yield [% of NaI(Tl)] (for γ-rays)

15–20

Afterglow

0.005%@3ms
