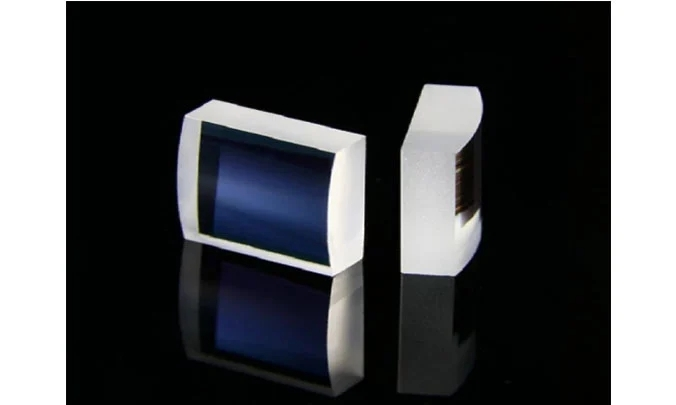

Cylindrical Lenses are specialized optical components designed to focus light into a line rather than a point. Unlike spherical lenses, which have a uniform curvature in all directions, cylindrical lenses have curvature in only one direction. This unique design allows them to manipulate light in ways that spherical lenses cannot, making them indispensable in various optical systems. These lenses are commonly used as laser line generators, to adjust image height size, or to correct for astigmatism in imaging systems.
Cylindrical lenses have a wide range of applications across different fields. In laser optics, they are often used to transform a laser beam into a line, which is essential for applications like laser scanning, bar code reading, and alignment systems. In imaging systems, cylindrical lenses can adjust the height of an image without affecting its width, making them useful for anamorphic lens systems in cinematography. Additionally, they are crucial in correcting astigmatism in both human vision and optical instruments. Astigmatism occurs when the eye’s cornea is irregularly shaped, causing light rays to focus at different points. Cylindrical lenses correct this by focusing light into a single line, thereby improving vision clarity.
The choice between cylindrical and spherical lenses depends on the specific application and the optical requirements. Spherical lenses are generally easier to produce and are effective for applications requiring uniform focusing of light. However, they are not suitable for correcting astigmatism or for applications requiring line focus. Spherical power means the rays of light are not getting focused on the retina; they are either focused in front or at the back of the eye. Here, the shape of the cornea is regular, and the blur that the individual sees is a complete blur instead of the glare and shadowing effect seen in cylindrical power.
On the other hand, cylindrical lenses are specifically designed to correct astigmatism and to focus light into a line. While they are highly effective for these purposes, they can cause visual distortions, particularly in peripheral vision, leading to discomfort or difficulty adjusting. Therefore, the choice between cylindrical and spherical lenses should be based on the specific needs of the application.
Producing cylindrical lenses requires a high degree of precision and expertise. The lenses are typically made from optical glass and can be either molded or cut out of a cylinder to meet specific requirements. The production process involves several steps, including polishing, coating, and rigorous examination for proper power and performance.
Cylindrical lenses generally take more effort to produce than spherical lenses. The precision required in shaping and polishing the lens to achieve the desired curvature and optical properties is significantly higher. This is why advanced manufacturing techniques and equipment are essential for producing high-quality cylindrical lenses.
When it comes to custom cylindrical lenses, OST Photonics stands out as a leading cylindrical lens supplier. We understand that many projects require custom optical lenses, and for cylindrical lenses, customization is often the norm rather than the exception. Achieving the desired results requires a cylindrical lens that matches the exact dimensions and specifications necessary to project a line of the proper length and focal distance.
At OST Photonics, we use high-speed polishers that allow us to produce lenses 10 times faster than traditional polishing methods. This speed, combined with our precision and high-quality control standards, enables us to manufacture custom cylindrical lenses to meet a variety of specific needs. We can produce cylinder lenses with different types of glass, various radii, and custom shapes. Our capabilities also extend to crafting special types of lenses, including achromatic cylindrical lenses, parabolic mirrors, cylindrical ellipsoidal mirrors, and double-curved cylindrical lenses.
Our production staff follows strict ISO 9001 standards and uses state-of-the-art metrology equipment to test finished lenses for quality and performance. With years of experience in designing, manufacturing, and refining custom optical lenses, OST Photonics is well-equipped to meet the diverse needs of our clients across various industries.
Cylindrical lenses are essential optical components with unique properties that make them suitable for a wide range of applications. Whether you need to correct astigmatism, generate laser lines, or adjust image dimensions, cylindrical lenses offer the precision and functionality required. While they may be more challenging to produce than spherical lenses, the expertise and advanced manufacturing techniques at OST Photonics ensure that you receive high-quality, custom cylindrical lenses tailored to your specific needs. If you’re looking for a reliable cylindrical lens supplier, OST Photonics is your go-to source for precision, speed, and quality.
