OST Photonics LYSO(Ce) Scintillators

Cerium-doped Lutetium Yttrium Orthosilicate or LYSO(Ce) scintillator has the advantages of high light output, high density, short decay time, excellent timing and energy resolution. These properties make LYSO(Ce) becoming the most popular scintillators in Nuclear medicine (Positron Emission Tomography, PET/CT, and SPECT scan system), high energy physics, security scanners, and other applications.

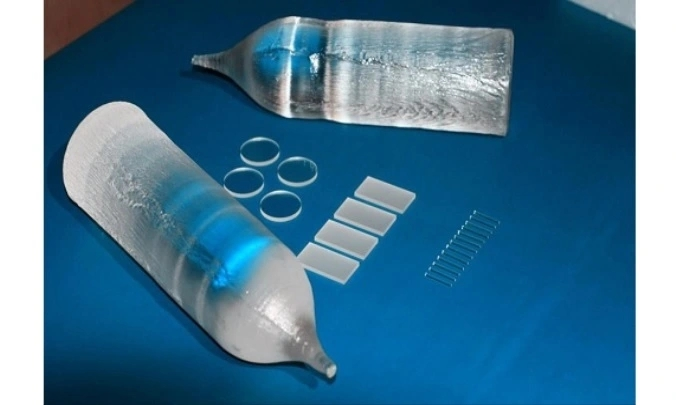

OST Photonics has a complete set of crystal processing and assembly line, we can process all kinds of LYSO(Ce) crystals and LYSO(Ce) arrays according to customer's requirements. We have our own laboratory to test the product performance to ensure that the product performance meets the requirements of our customers. We provide professional solutions for scintillation crystal growth, surface treatment and array assembly.


Application of LYSO(Ce) Scintillators (LYSO:Ce Scintillators)


  • Positron emission tomography-computed tomography (PET-CT)

  • Nuclear magnetic resonance imaging (NMRI)

  • Single photon emission computed tomography (SPECT)

  • High energy physics


Advantages of LYSO(Ce) Scintillators (LYSO:Ce Scintillators)


  • High light output

  • High density

  • Short decay time

  • Stable chemical and physical properties


The Ability of OST Photonics


  • Maximum Size: ɸ105mm x 200mm

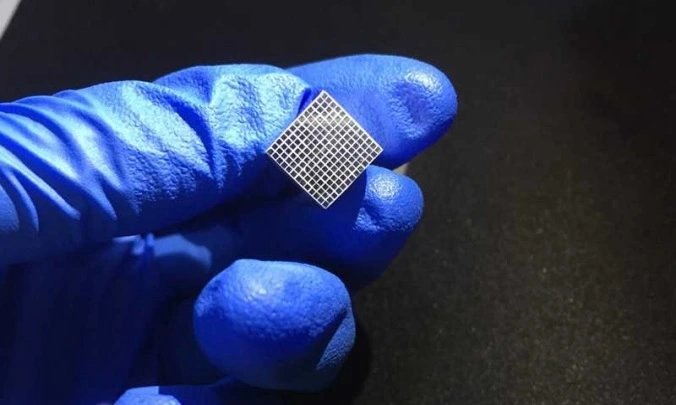

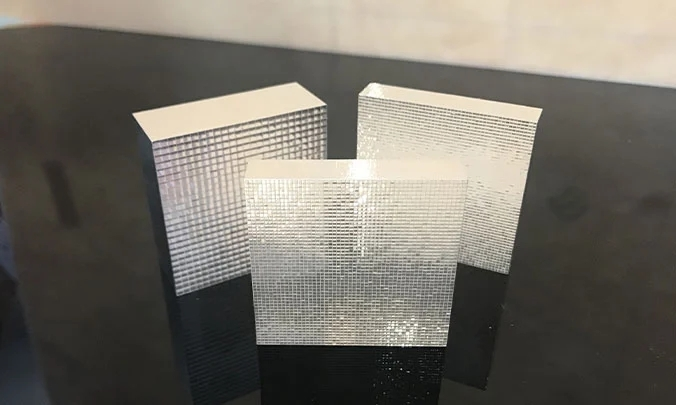

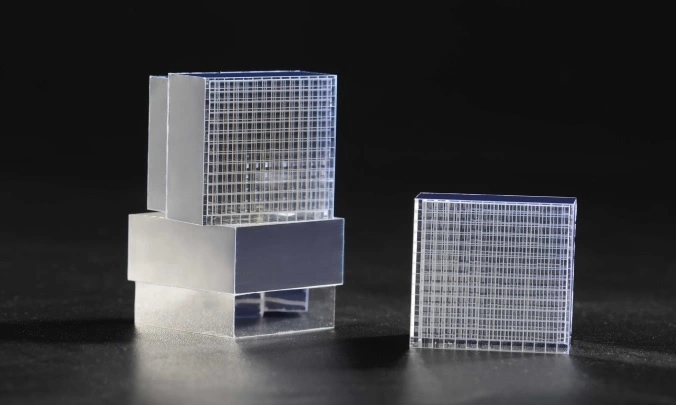

  • Available items: monolithic crystal, scintillation screen, pixellated array


Different Types of LYSO(Ce) Scintillators (LYSO:Ce Scintillators)


Type

Light yield

Decay time

Standard type

32000 photons/keV

40-44 ns

Fast Decay time type

29000 photons/keV

32-34 ns


Properties of LYSO(Ce) Scintillators (LYSO:Ce Scintillators)


Density (g/cm3)

7.4

Radiation Length (cm)

1.10

Effective Atomic Number

66

Decay Constant (ns)

40-44

Light Yield (Relative BGO=100%)

190

Index of Refraction

1.82

The wavelength of Max Emission (nm)

420

Radiation Hardness (rad)

1x108

Melting Point (°C)

2050

Hardness (Mohs)

5.8

Cleavage

None

Hygroscopicity

No
