sp102 plastic scintillator
sp102 plastic scintillator

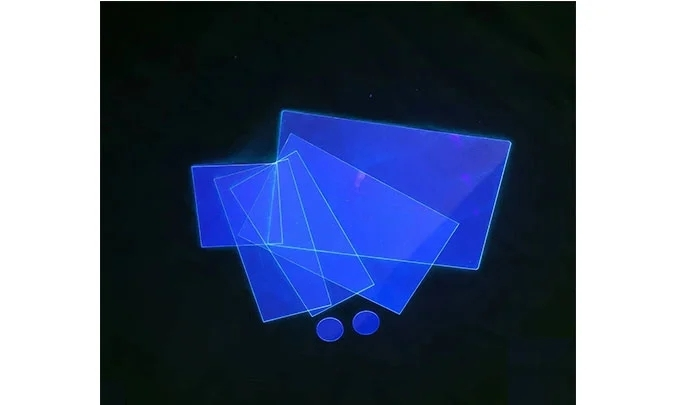

OST Photonics SP102 Plastic Scintillators

SP102 plastic scintillators are specially designed for beta-ray measurement, the thickness are generally between 0.25 ~ 1mm, so that gamma-rays can pass through it. The material composition of this scintillator is the same as that of SP101, but the concentration ratio of luminescent materials is different to some extent. SP102 plastic scintillator is made of styrene monomer by thermal polymerization process, it has the advantages of high detection efficiency, good uniformity, no deformation and so on.


OST Photonics can provide SP102 plastic scintillator in different specifications upon your requests.


Application of SP102 Plastic Scintillators


  • Hand-held surface contamination meter

  • Whole body contamination monitor

  • PM2.5 Particle detector


Advantages of SP102 Plastic Scintillators


  • High detection efficiency

  • Good uniformity

  • No hygroscopy

  • No deformation


Properties of SP102 Plastic Scintillators


Material

polystyrene

Density (g/cm3)

1.023

Refractive index

1.58

Light output relative to anthracene+

64%

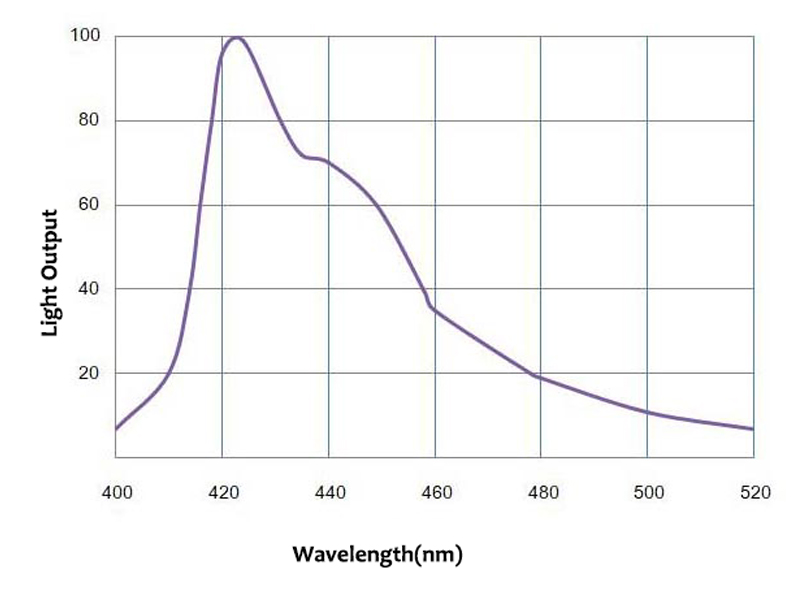

Peak Emission (nm)

423

Scintillation decay time (ns)

2.4

Softening temperature (℃)

75

Operting temperature (℃)

-40~55

Energy detection range

50KeV~3MeV
