OST Photonics LaBr3(Ce) Scintillators

LaBr3(Ce) lanthanum bromide crystal has excellent scintillation performance under gamma-ray or X-ray excitation, including high light output, perfect energy resolution, good energy linearity, short scintillation decay time and other advantages. LaBr3(Ce) crystal has higher light output and better energy resolution than NaI(Tl) crystal, it is widely used in environmental monitoring, oil logging, nuclear medicine, high energy physics, safety inspection, nuclide identification and other dual-use radiation detection fields.


OST Photonics offers encapsulated LaBr3(Ce) scintillator, high temperature encapsulated LaBr3(Ce) scintillator, pixellated LaBr3(Ce) array, LaBr3(Ce) scintillation detector upon customer's requirements. LaBr3(Ce) detector assemblies integrated with SiPM are also available if required.


Application of LaBr3(Ce) Scintillators (LaBr3:Ce Scintillators)


  • Environmental monitoring

  • OIil logging

  • Nuclear medicine,

  • High energy physics

  • Safety inspection

  • Nuclide identification


Advantages of LaBr3(Ce) Scintillators (LaBr3:Ce Scintillators)


  • Excellent energy resolution

  • High light output

  • Good energy linearity

  • Short scintillation decay time

  • High count rate capabilities

  • Excellent light output stability with temperature


The Ability of OST Photonics


  • Maximum Size: ɸ76mm x 200mm

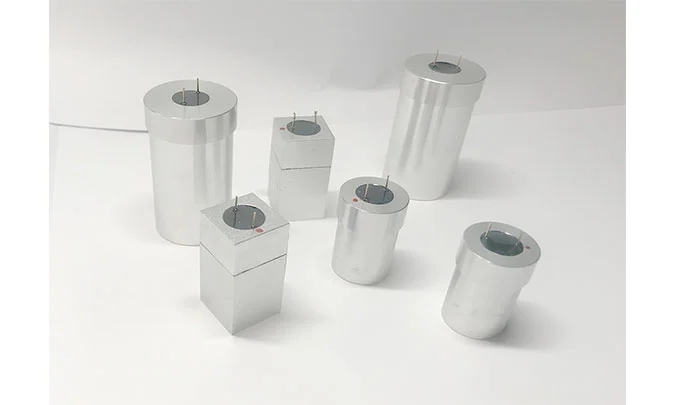

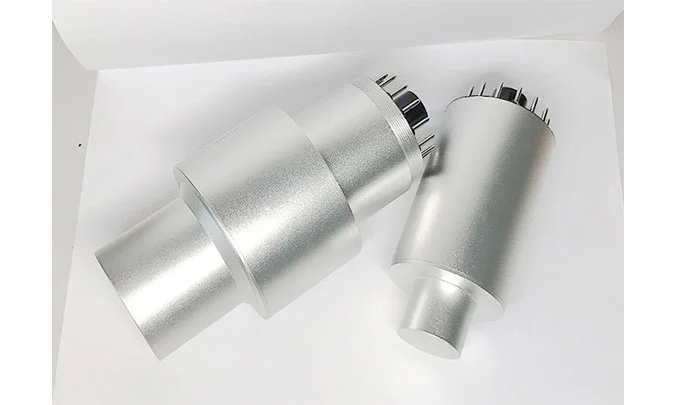

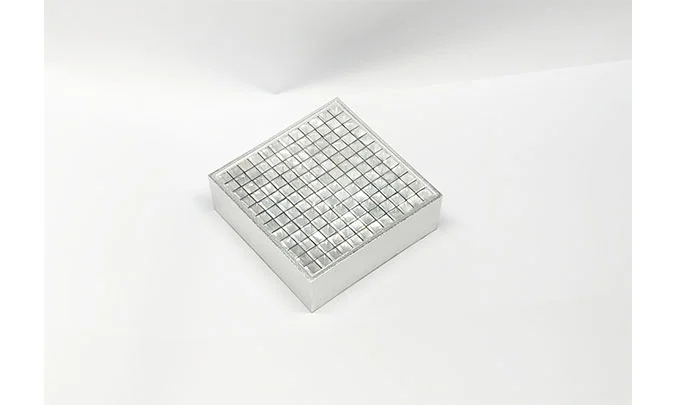

  • Available items: encapsulated scintillator, high temperature encapsulated scintillator, pixellated array, scintillation detector(scintillator+PMT, scintillator+SiPM)

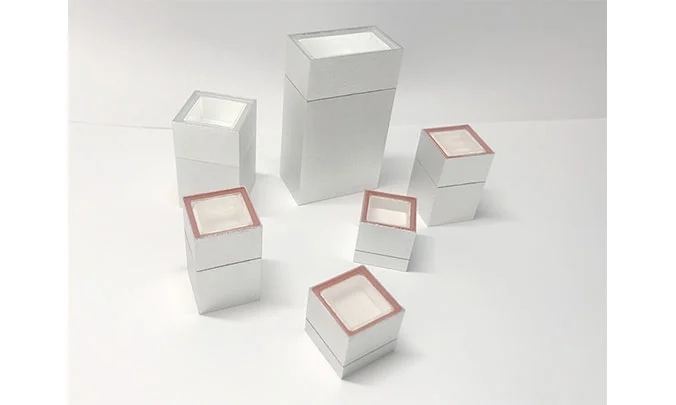

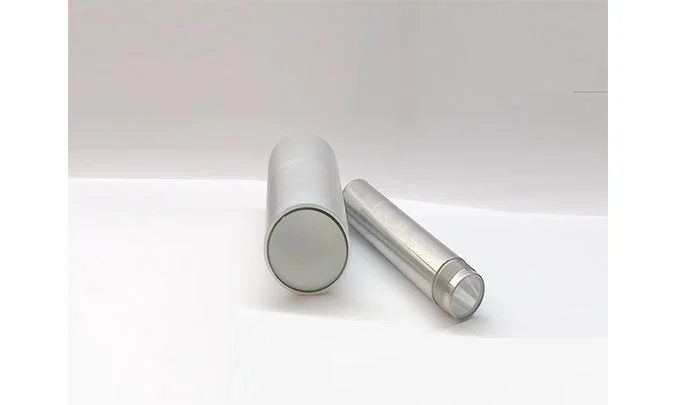

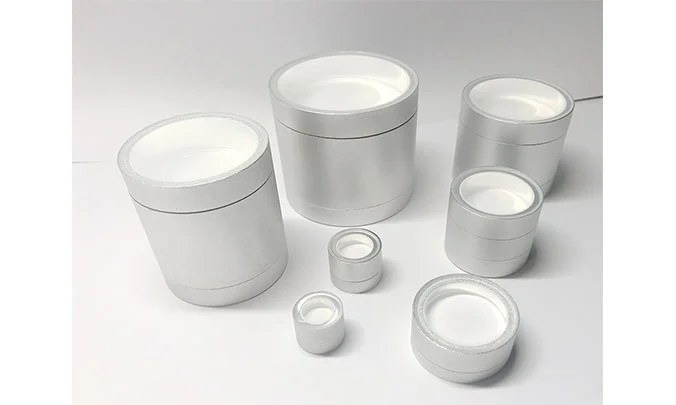

  • Different encapsulation designs: general cylindrical LaBr3(Ce) scintillator, rectangular LaBr3(Ce) scintillator, thin disk type LaBr3(Ce) scintillator, and so on.

  • Typical size: 1" diameter x 1" thickness, 1.5" diameter x 1.5" thickness, 2" diameter x 2" thickness, 3" diameter x 3" thickness, 1" diameter x 4" thickness, 1" diameter x 2.5 mm thickness.

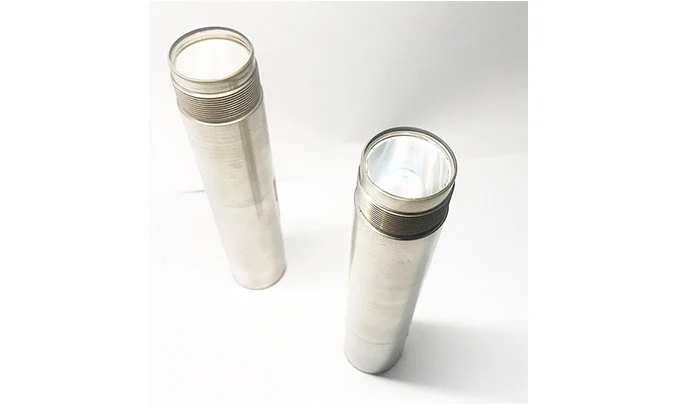

Performance of High-Temperature LaBr3(Ce) Scintillators (LaBr3:Ce Scintillators)


Emission Peak Wavelength (nm)

380

Scintillation Decay Time (ns)

20

Energy Resolution (for Cs-137, at normal temperature)

<4%@662keV or <5%@662keV or <7%@662keV

Operating Temperature (℃)

25~175 (temperature change<8℃/hour)

Storage Temperature (℃)

-20~175 (temperature change<8℃/hour)

Vibration Resistance

10g, 5Hz~150Hz~5Hz

Shock Resistance

50g, 11ms


Typical Specifications of High-Temperature LaBr3(Ce) Scintillators (LaBr3:Ce Scintillators)


Model

Crystal Size (mm)

External Dimension (mm)

Energy Resolution (for Cs-137, at normal temperature)

LB25.4X50H

φ25.4*50

φ31.75*75

<5%@662keV

LB25.4X100H

φ25.4*100

φ31.75*125

<5%@662keV

LB25.4X122H

φ25.4*122

φ31.75*150

<7%@662keV

LB25.4X150H

φ25.4*150

φ31.75*175

<7%@662keV

LB50X100H

φ50*100

φ57*125

<4%@662keV


Properties of LaBr3(Ce) Scintillators (LaBr3:Ce Scintillators)


Relative Light Output of NaI(Tl)

165%

Scintillation Decay Time (ns)

20

Emission Peak Wavelength (nm)

380

Refractive Index (peak wavelength)

1.90

Density(g/cm3)

5.1

Light Yield (photoelectron /MeV)

63000

Energy Resolution (for Cs-137, @662keV)

≤3.5%

Hygroscopic

Yes

Mohs hardness

2

Operating temperature (℃)

-20~50 (temperature change<8℃/hour)

Storage temperature (℃)

-40~50 (temperature change<8℃/hour)
