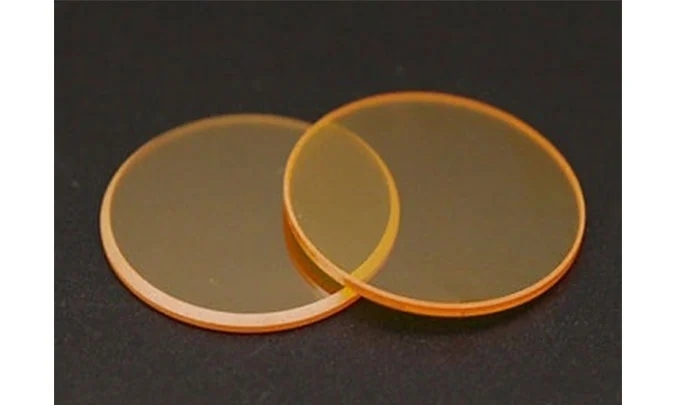

OST Photonics ZnSe Polycrystals Window

Zinc Selenide (ZnSe) are excellent for various IR applications due to their impressively broad transmission wavelength range from 600 nm to 16000 nm and low absorption for IR light. ZnSe also exhibits high thermal shock resistance and low chromatic dispersion making ZnSe windows ideal for high-power CO2 lasers and thermal imaging cameras. Additionally, the material is relatively soft and sensitive, thus not recommended for applications in extreme environments. Extra cautions need to be taken during cleaning, handling, and mounting.

Application of ZnSe Polycrystals Window


  • Thermal imaging cameras

  • High-power CO2 lasers

  • IR optical components


Advantages of ZnSe Polycrystals Window


  • Low chromatic dispersion

  • Ideal for Thermal Imaging, FLIR, and Medical Systems

  • Broad transmission wavelength range from 600 nm to 16000 nm

  • Low absorption for IR light

  • High thermal shock resistance


Specifications of ZnSe Polycrystals Window


Materials

CVD ZnSe polycrystal

Size

Upon the customer’s request

Diameter Tolerance

+0/-0.1 mm

Thickness Tolerance

+/-0.1 mm

Aperture

>90%

Surface Quality

60/40~10/5 (S/D)

Parallelism

<1 arc minute

Chamfer

0.2-0.5mmx45°

Coating

Uncoated or upon customer’s request


Properties of ZnSe Polycrystals Window


Transmission Range

0.6 to 21 microns

Refractive Index

2.4028 at 10.6 micron

Refractive Loss

29.1% at 10.6 microns

Crystal/Class Structure

Cubic, ZnS, F43m

Density

5.27 g/cc

Hardness(Knoop)

120 Knoop with 50g indenter

Youngs Modulus

67.2 GPa

Bulk Modulus

40 GPa

Poisson Ratio

0.28

Elastic Limit

55.1 MPa(8000psi)

Molecular Weight

144.33

Thermal Expansion

7.1×10^-6 /℃ at 273K

Thermal Conductivity

18 W m-1K-1 at 298K

Melting Point

1525 ℃

Specific Heat Capacity

339 J Kg-1K-1

Thermal Expansion

7.1×10^-6 /℃ at 273K

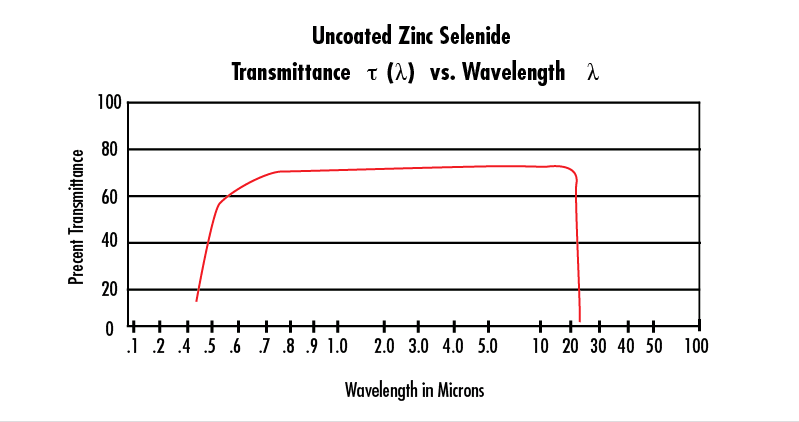

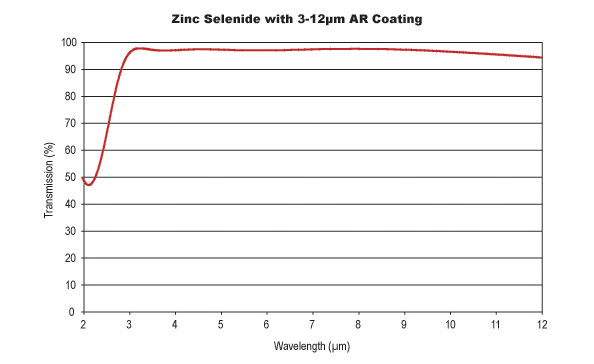

Technical Images of ZnSe Polycrystals Window
