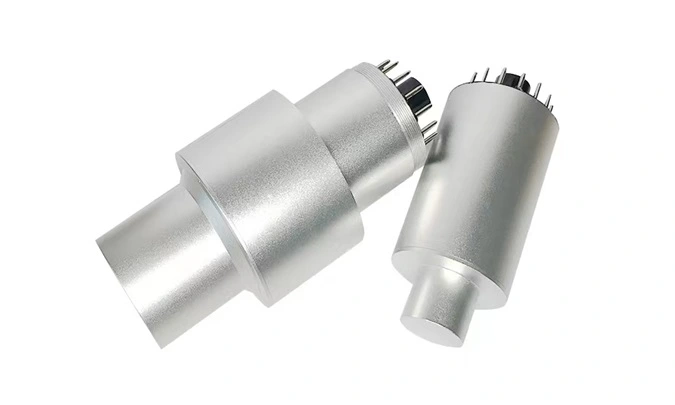

labr3 detectors
labr3 detectors

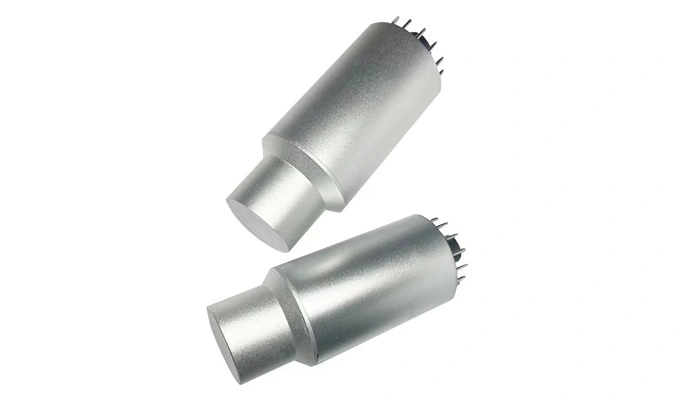

D38x38mm LaBr3(Ce) detectors

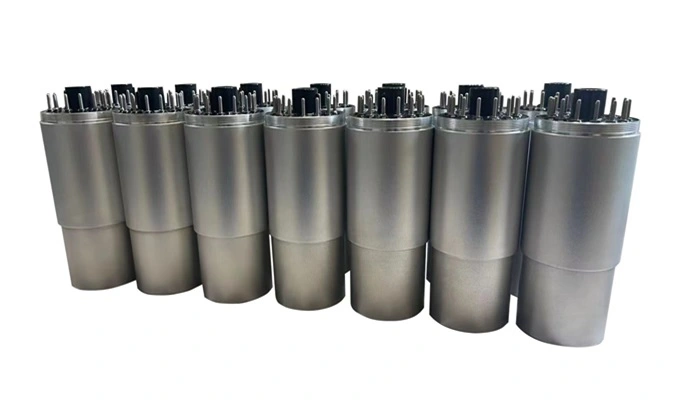

D50x50 mm NaI(Tl) detectors

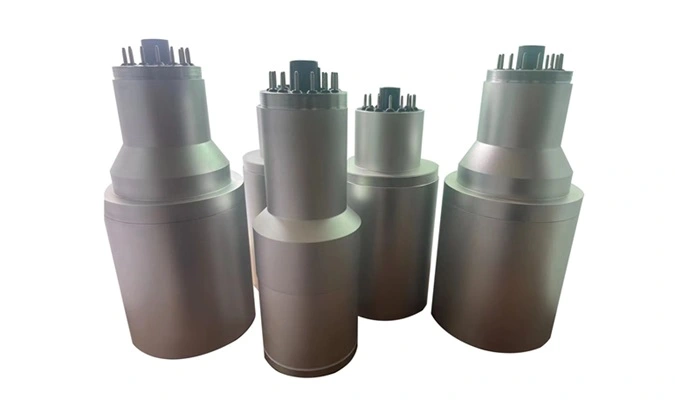

various of naitl detectors
NaI(Tl) scintillation detectors

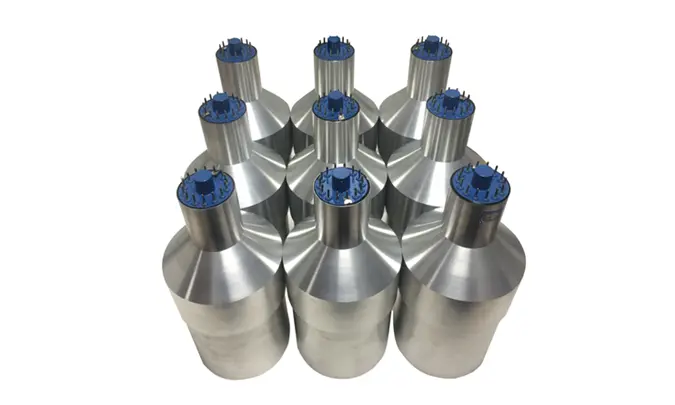

d125x125 mm naitl detectors

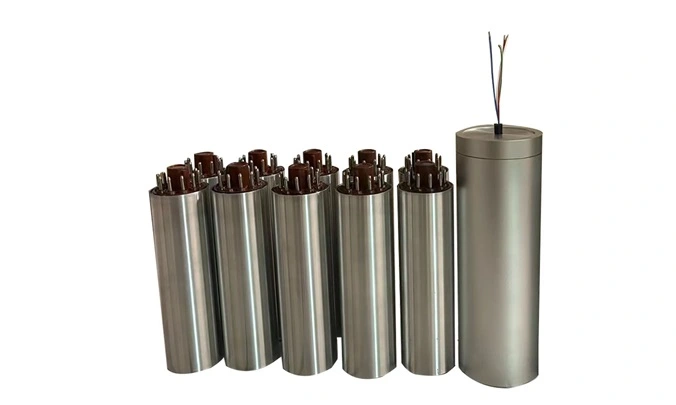

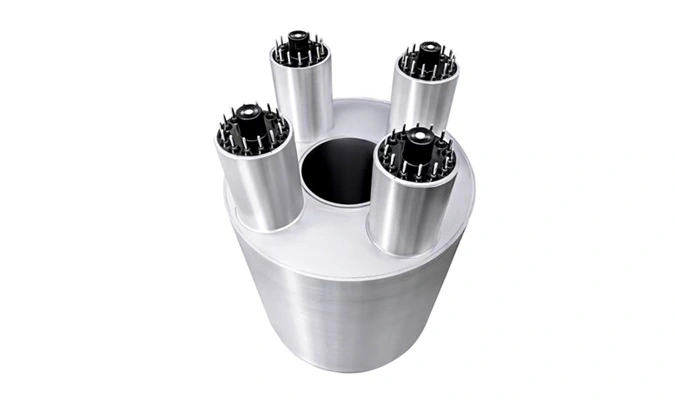

customized naitl detectors

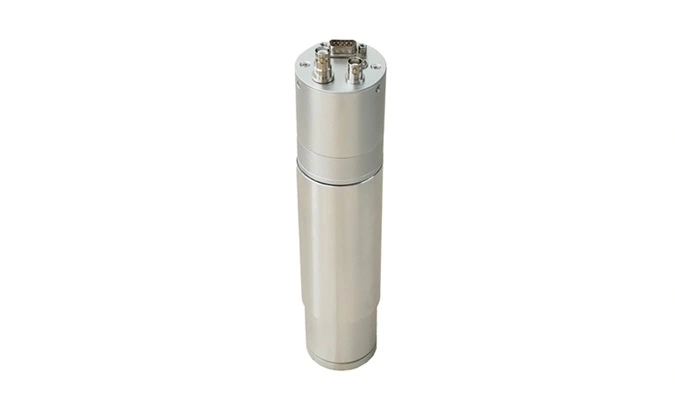

naitl detector with electronics

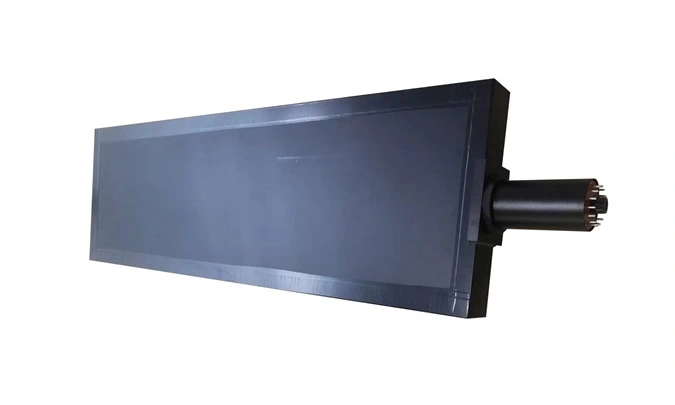

plastic scintillator detector

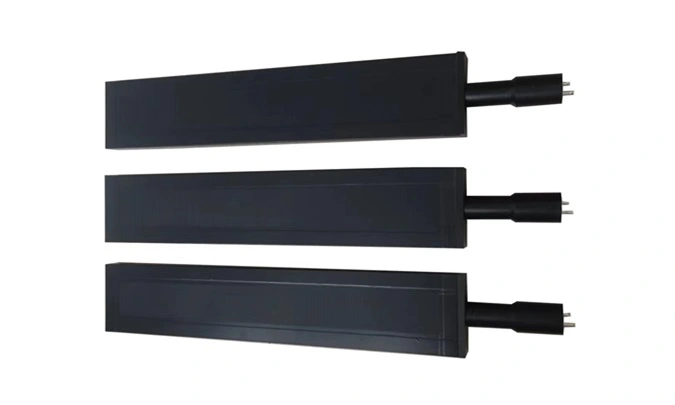

plastic scintillator detectors

OST Photonics Scintillation Detector Assemblies

OST Photonics offers a variety of standard and custom scintillation detector assemblies. These scintillation detectors are assembled from photomultiplier tubes (PMTs), scintillators, magnetic/light shielding, electronics (optional) and metal (aluminum or stainless steel) housing. They are characterized by high sensitivity, high cost performance and good pulse amplitude resolution. Our scintillation detectors are widely used in radiation counting, spectroscopy and radiation dosimetry applications.


Applications of Scintillation Detector Assemblies


  • Gamma-ray spectroscopy

  • Radioimmunoassay

  • Aerial survey

  • Whole-body counting

  • Security portal monitoring

  • Nuclear medicine

  • High energy physics


Advantages of Scintillation Detector Assemblies


  • Excellent energy resolution

  • High sensitivity

  • High-cost performance

  • Compact package


Standard Scintillation Detector Assemblies


Scintillator

Model

Scintillator Size

PMT dia. pins

PMT stages

Energy Resolution@662keV

Metal housing

Remarks

NaI(Tl)

NAI1/1P1

1" dia. x 1" thick

1" 14-pin

11

≤7.5%

Aluminum housing

(anodized)

Integrated electronics

(optional)

NaI(Tl)

NAI1.5/1.5P2

1.5" dia. x 1.5" thick

2" 14-pin

10

≤7.5%

Aluminum housing (anodized)

Integrated electronics

(optional)

Plug-on electronics

(optional)

NaI(Tl)

NAI1.5/1.5P2-2

1.5" dia. x 1.5" thick

2" 14-pin

8

≤7.5%

Aluminum housing (anodized)

Integrated electronics

(optional)

Plug-on electronics

(optional)

NaI(Tl)

NAI2/2P2

2" dia. x 2" thick

2" 14-pin

10

≤7.5%

Aluminum housing (anodized)

Integrated electronics

(optional)

Plug-on electronics

(optional)

NaI(Tl)

NAI2/2P2-2

2" dia. x 2" thick

2" 14-pin

8

≤7.5%

Aluminum housing (anodized)

Integrated electronics

(optional)

Plug-on electronics

(optional)

NaI(Tl)

NAI3/3P3

3" dia. x 3" thick

3" 14-pin

8

≤7.5%

Aluminum housing (anodized)

Integrated electronics

(optional)

Plug-on electronics

(optional)

NaI(Tl)

NAI5/5P5

5" dia. x 5" thick

5" 14-pin

10

≤8.5%

Aluminum housing (anodized)

Integrated electronics

(optional)

Plug-on electronics

(optional)

NaI(Tl)

NAI6/3P5

6" dia. x 3" thick

5" 14-pin

10

≤8.5%

Aluminum housing (anodized)

Integrated electronics

(optional)

Plug-on electronics

(optional)

NaI(Tl)

NAI6/6P5

6" dia. x 6" thick

5" 14 -pin

10

≤8.5%

Aluminum housing (anodized)

Integrated electronics

(optional)

Plug-on electronics

(optional)

NaI(Tl)

NAI2/4/16P3

2" x 4" x 16" long

3" 14 -pin

8

≤8.5%

Aluminum housing (anodized)

Integrated electronics

(optional)

Plug-on electronics

(optional)

NaI(Tl)

NAI4/4/16P3.5

4" x 4" x 16" long

3.5" 14 -pin

8

≤8.5%

Stainless steel housing

Integrated electronics

(optional)

Plug-on electronics

(optional)

LaBr3(Ce)

LB1/1P2

1" dia. x 1" thick

2" 14 -pin

8

≤ 3.5%

Aluminum housing (anodized)

Integrated electronics

(optional)

Plug-on electronics

(optional)

LaBr3(Ce)

LB1.5/1.5P2

1.5" dia. x 1.5" thick

2" 14 -pin

8

≤ 3.5%

Aluminum housing (anodized)

Integrated electronics

(optional)

Plug-on electronics

(optional)

LaBr3(Ce)

LB2/2P3

2" dia. x 2" thick

3" 14 -pin

8

≤ 3.5%

Aluminum housing (anodized)

Integrated electronics

(optional)

Plug-on electronics

(optional)

LaBr3(Ce)

LB3/3P3.5

3" dia. x 3" thick

3.5" 14 -pin

8

≤ 3.5%

Aluminum housing (anodized)

Integrated electronics

(optional)

Plug-on electronics

(optional)


Custom Scintillation Detector Assemblies Designs Options


  • Scintillator materials: CsI(Na), BGO and plastic scintillator, etc.

  • NaI(Tl) scintillator geometry: rectangular NaI(Tl) scintillator, end-well type NaI(Tl) scintillator, side-well type NaI(Tl) scintillator and thin disk type NaI(Tl) scintillator for low-energy and X-ray detection.

  • PMT models: we can recommend the applicable PMT models for you, you can also specify the model of PMT for your detectors.

  • Electronics: integrated or plug-on voltage divider, preamplifier, high voltage power supply and multi-channel analyzer.

  • Custom designs: such as special flanges, mounting fixtures, low background packaging, harsh environments to operate (extreme cold, vacuum, high temperatures, underwater, violent mechanical shock and vibration) or other modifications can be requested.
