nd ce yag laser crystals

OST Photonics Nd: Ce: YAG Laser Crystals

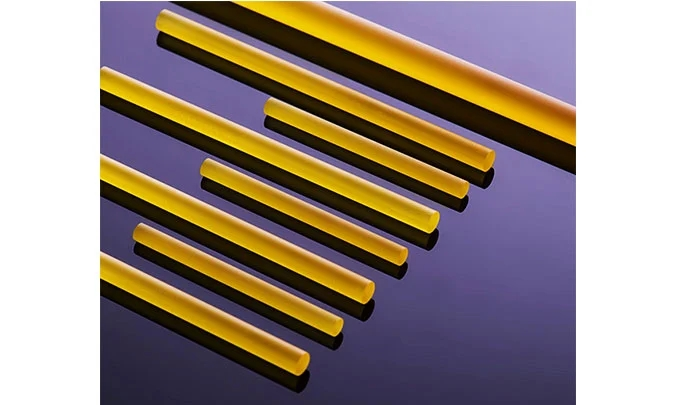

Nd:Ce:YAG is an excellent laser material used for no-water cooling and miniature laser systems. The Nd:Ce:YAG laser rod we produce has the characteristics of high efficiency, low threshold, anti-violet radiation for lasers operation. As a result-thermal distortion in Nd:Ce:YAG is appreciably less and the output lasers energy is greater (20%-40%) than that in Nd:YAG at the same pumping. It is the most ideal laser material for the air cooling lasers. It is suitable for different modes of operation( pulsed, Q-switched,mode locked) and high-average power lasers.


Advantages of Nd Ce YAG Laser Crystals


  • High efficiency

  • Low threshold

  • Good anti-UV irradiation property

  • Good thermal stability

  • Good repetition rate


Applications of Nd Ce YAG Laser Crystals


  • mini laser rangefinder

  • laser face beautifier


Specifications of Nd Ce YAG Laser Crystals


Dopant Concentration

Nd:0.9~1.3at%, Ce:Nd=1:10

Orientation

[111] within 5°

Wavefront Distortion

≤ 0.2λ/inch

Extinction Ratio

≥28 dB

Rod Sizes

Diameter:3~6mm, length:40~100mm

Dimensional Tolerances

Diameter: ±0.05mm, length: ± 0.5mm

Barrel finish

Ground finish with 400#or polished

Parallelism

≤10"

Perpendicularity

≤5′

Flatness

λ/10 @632.8nm

Surface quality

10-5(MIL-O-13830A)

AR coating Reflectivity

≤ 0.25% (@1064nm)

Damage Threshold

700MW/cm²10ns 1Hz at 1064nm


Properties of Nd Ce YAG Laser Crystals


Laser Wavelength

1.064μm

Emission Linewidth

4.5Å @1064nm

Emission Cross Section (Nd1at%)

2.7~8.8x10^-19cm-2

Fluorescence Lifetime (Nd1at%)

230μs

Index of Refraction

1.8197@1064nm

Lattice Parameters

12.01 Å

Melting Point

1970℃

Moh Hardness

8.5

Density

4.56±0.04g/cm3

Specific Heat (0-20)

0.59J/g.cm3

Thermal Expansion Coefficient

[111]Direction:7.8x10^-6/℃(0~250℃)

Thermal Conductivity

14W/m/K(@20℃)

10.5W/m/K(@100℃)
