glass scintillators
glass scintillators

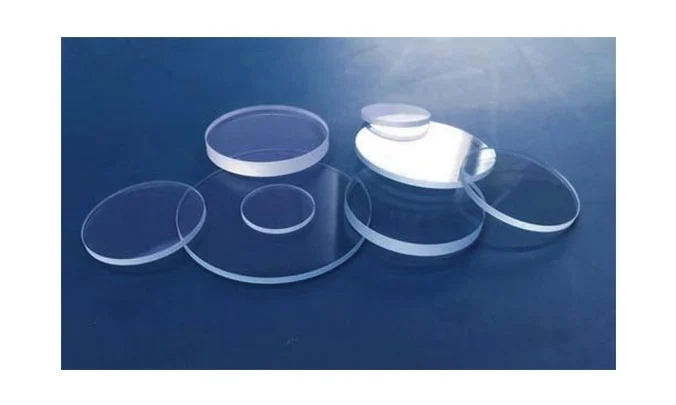

OST Photonics Li-6 Glass Scintillators

Li-6 glass scintillator is a kind of inorganic scintillator which can be used for thermal neutron detection. It has the advantages of short decay time, high efficiency of slow neutron detection and good temperature performance. In addition, the Li-6 glass scintillator is easy to process and form, non-hygroscopic, acid and alkali resistant, can withstand the high and low temperature rapid change. Therefore, in the harsh situation that contains corrosive liquid and vapor, the lithium glass (Ce) can still work, but other scintillators cannot be suitable. Li-6 glass scintillator are widely used in neutron time-of-flight experiments, oil and natural gas exploration, moisture content measurement, nondestructive testing and neutron photography.


OST Photonics can provide different specifications of Li-6 glass scintillators according to your requirements.


Applications of Li-6 Glass Scintillators


  • Neutron time-of-flight experiments

  • Oil and natural gas exploration

  • Moisture content measurement

  • Nondestructive testing(NDT)

  • Neutron photography


Advantages of Li-6 Glass Scintillators


  • Fast decay time

  • High efficiency of slow neutron detection

  • Good temperature performance

  • Non-hygroscopic


The Ability of OST Photonics


  • Maximum Size: ɸ50mm x 50mm

  • Available items: monolithic glass


Properties of Li-6 Glass Scintillators


Li6+ (%)

7.5~11.2wt%

The relative light output of NaI(Tl)

12%

Scintillation decay time (ns)

53

Peak Emission (nm)

416

Energy resolution (thermal neutrons@25°C) (%)

≤28%

Density (g/cm3)

2.3

Operating temperature range

-150℃-200℃

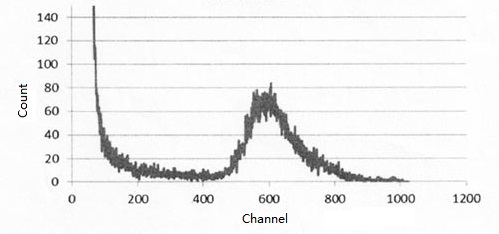

Neutron Source Test Spectrum of Li-6 Glass Scintillators
