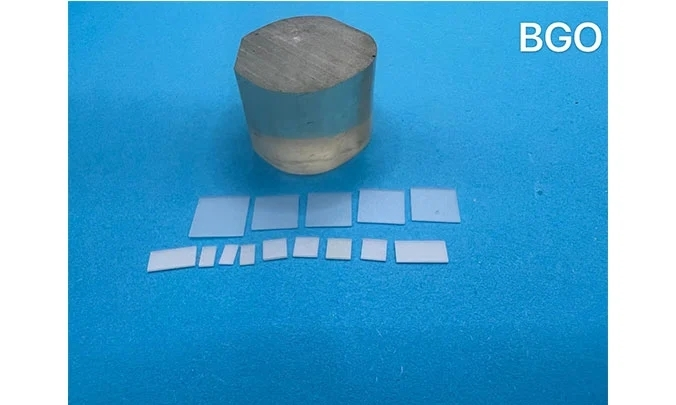

bgo substrate
bgo substrate

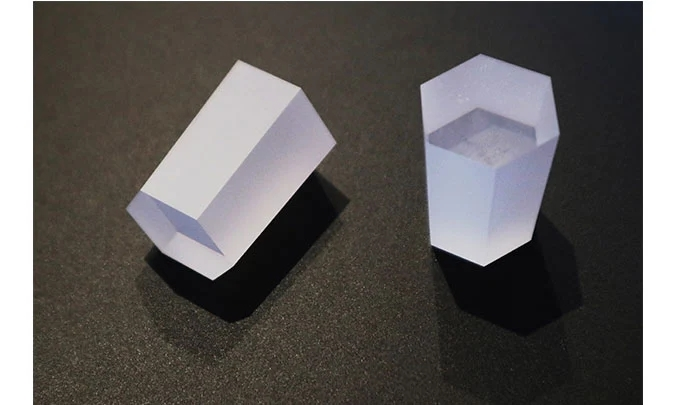

bgo single crystal

OST Photonics BGO Substrates

Bismuth germanate (BGO) is a colorless and transparent non-polar oxide crystal with a cubic structure. It is insoluble in water and can emit green fluorescence with a peak of 480nm under the excitation of high-energy particles or high-energy rays (x-rays, γ-rays). BGO crystal has the advantages of strong radiation blocking ability, high scintillation efficiency, excellent energy resolution and non-deliquescent.


OST Photonics offers high quality BGO substrates for researchers and industries. Crystal orientation, size and thickness can be customized according to your requirements.


Application of BGO Substrates


  • Positron emission tomography (PET)

  • High-energy physics

  • Nuclear medicine

  • Geological exploration

  • Gamma-ray spectroscopy



Advantages of BGO Substrates


  • Strong radiation blocking ability

  • High scintillation efficiency

  • High Z

  • Good photopeak to Compton ratio

  • High density



Ability of BGO Substrates


  • Orientation:<001>,<110>, etc.

  • Maximum Size: ɸ76mm x 300mm, 40mm x 80mm x 200mm

  • Dimension: 10x10mm, 10x5mm, 5x5mm, etc.

  • Thickness: 0.5mm, 1.0mm, etc.

  • Available items: substrate, blanks, pixellated array, scintillation detector and customized optics



Specification and Properties of BGO Substrates


Crystal System

Cubic

Crystal Lattice Constant

a=1.0518 Å

Density

7.13 g/cm3

Hardness

5 Mohs

Melt Point

1050 ℃

Refractive Index

2.15

Radiation Length

1.1 cm

Wavelength of Emission Max.

480 nm

Primary Decay Time

300 ns

Relative Light Output

15-20% of Nal(Tl)

Energy Resolution

20%@511 KeV

Orientation

<001>,<110>, etc.

Orientation Tolerance

±0.5° or better

Maximum Size

ɸ76mm x 300mm, 40mm x 80mm x 200mm

Dimension

10x10mm, 10x5mm, 5x5mm, etc.

Dimension Tolerance

±0.1 mm or better

Thickness

0.5mm, 1.0mm, etc.

Thickness Tolerance

±0.05 mm or better

Surface Finish

Single side polished (SSP)/Double sides polished (DSP)

Package

Class 100 clean bag, Class 1000 super clean room
